• Rear axle, 3.42 ratio
• Pickup box
• Hill Descent Control
• Transfer case, electronic Autotrac with rotary dial control (Included with 4WD models only.)
• Differential, heavy-duty locking rear
• Four wheel drive
• Air cleaner, high-capacity
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Alternator, 150 amps
• Underbody shield, transfer case protection
• Frame, fully-boxed, hydroformed front section
• GVWR, 7200 lbs. (3266 kg) (Requires 4WD model.)
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Brakes, 4-wheel disc with DURALIFE rotors, 4-wheel antilock
• Capless Fuel Fill
• Exhaust, aluminized stainless-steel muffler and tailpipe

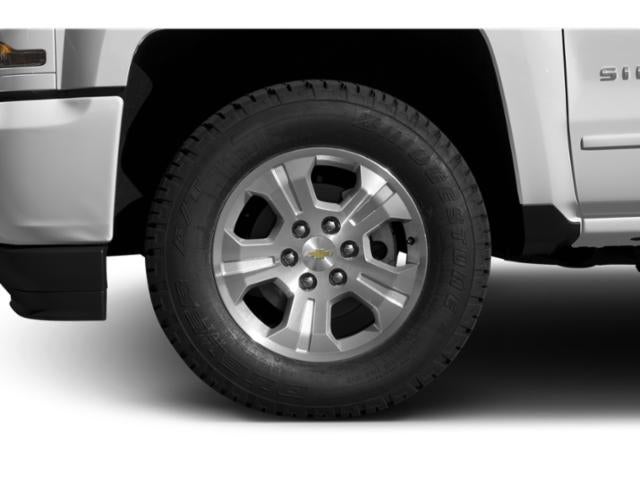

• Wheels, 18" x 8.5" (45.7 cm x 21.6 cm) bright-machined aluminum
• Tires, P265/65R18 all-terrain, blackwall
• Z71 Package, Off-Road (Requires 4WD model.), includes monotube Rancho brand shocks, (K47) air cleaner, (JHD) Hill Descent Control, (NZZ) underbody shield and (V76) recovery hooks. Also includes brushed metal Z71 door sill plate, unique Z71 gauge cluster, unique finish interior trim plates, unique lower bumper appearance, unique grille design with Z71 badge and Z71 pickup box decals (Includes (RD1) 18" bright machined wheels and (RBX) 18" tires. Upgradeable to 22" LPO wheels.)
• Wheel, full-size spare, 17" (43.2 cm) steel
• Tire, spare P265/70R17SL all-season, blackwall
• Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front, body-color
• Bumper, rear body-color, with CornerSteps
• Recovery hooks, front, frame-mounted, black
• Lamps, cargo area, cab mounted with switch on center switch bank
• CornerStep, rear bumper
• Moldings, bodyside, body color
• Wheelhouse liners, rear
• Grille surround, body color
• Active Aero Shutters, front
• Headlamps, high intensity discharge (HID) projector-beam with LED signature DRL
• Headlamp bezels, body-color
• Fog lamps, thin profile LED
• Mirrors, outside heated power-adjustable (includes driver's side spotter mirror) (Body-color.)
• Mirror caps, body-color (With (WGQ) Redline Edition or (WJP) Midnight Edition mirror caps will be Black.)
• Glass, deep-tinted
• Door handles, body-color (With (WGQ) Redline Edition or (WJP) Midnight Edition door handles will be Black.)

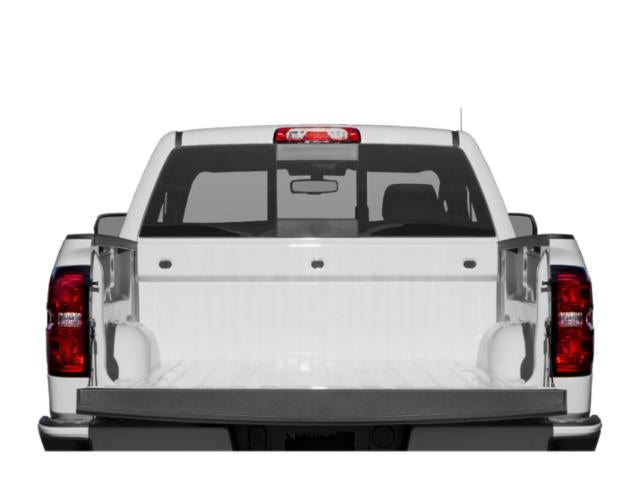

• Tailgate and bed rail protection cap, top

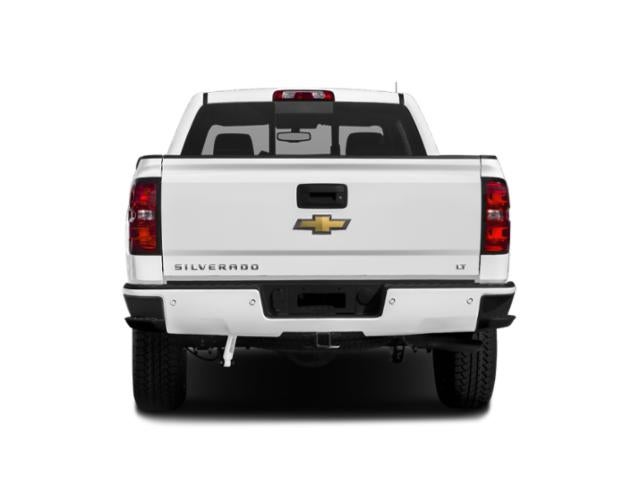

• Remote Locking Tailgate
• Tailgate, EZ-Lift and Lower

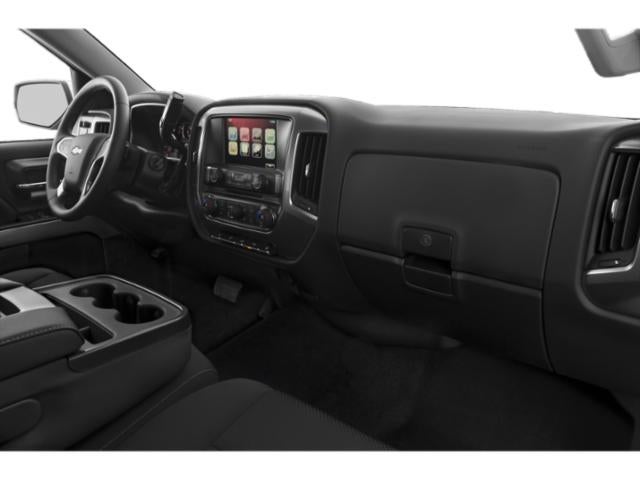

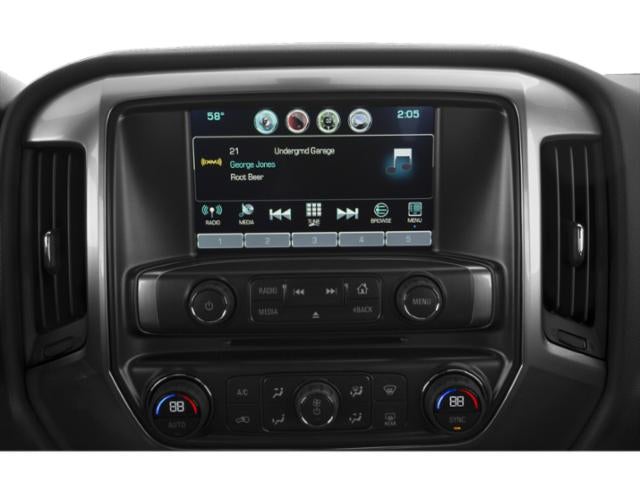

• Audio system, Chevrolet Infotainment System with 8" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone; and Shop with the ability to browse, select and install apps to your vehicle. Apps include Pandora, iHeartRadio, The Weather Channel and more.
• Single-slot CD/MP3 player
• Radio, HD
• SiriusXM Radio enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (IMPORTANT: The SiriusXM radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• 6-speaker audio system
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system
• Chevrolet 4G LTE and available built-in Wi-Fi hotspot offers a fast and reliable Internet connection for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first) (Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T. Visit onstar.com for details and system limitations.)

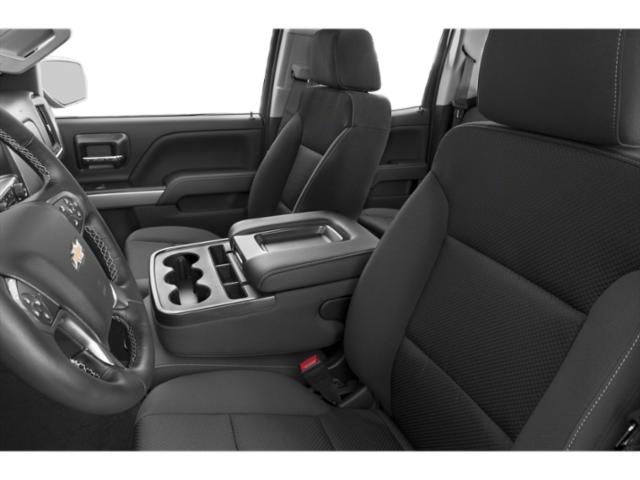

• Seats, front 40/20/40 split-bench, 3-passenger. Available in cloth. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar, lockable storage compartment in seat cushion, and storage pockets. (Includes (AG1) driver 10-way power seat-adjuster with (PDA) Texas Edition or (PDU) All Star Edition.)

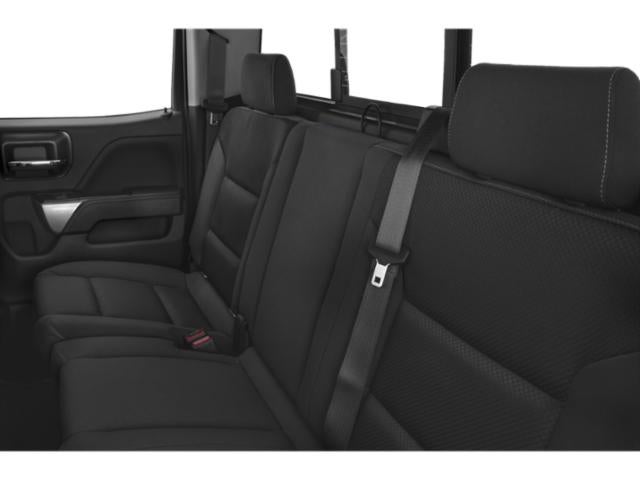

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Required with (PCO) Essentials Package, LPO or (PDO) Protection Package, LPO.)

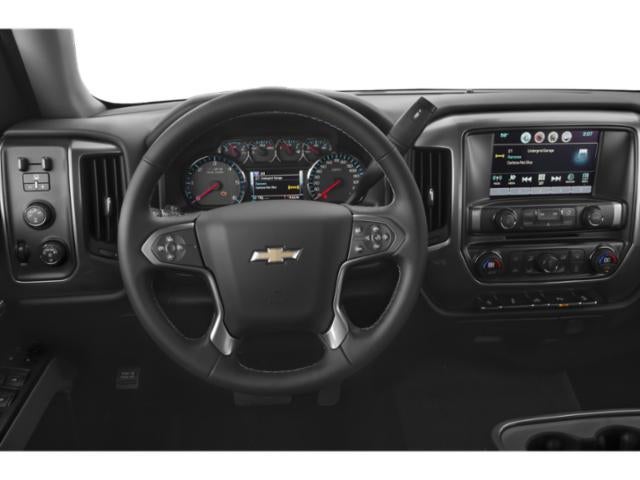

• Steering wheel, leather-wrapped with audio and cruise controls
• Steering column, Tilt-Wheel, manual with theft-deterrent locking feature
• Steering wheel audio controls
• Driver Information Center, 4.2-inch diagonal color display includes driver personalization, warning messages and vehicle information
• Windows, power front and rear with driver express up and down and express down on all other windows
• Door locks, power
• Remote Keyless Entry, with 2 transmitters
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Air conditioning, single-zone
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger on A-pillar

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable (Fleet orders receive a 3-month trial. Visit www.onstar.com for coverage map, details and system limitations. Services vary by model.)
• Chevrolet Connected Access with 10 years of standard connectivity which enables services such as, Vehicle Diagnostics, Dealer Maintenance Notification, Chevrolet Smart Driver, Marketplace and more. (Limitations apply. Not transferable. Standard connectivity available to original purchaser for ten years from the date of initial vehicle purchase for model year 2018 or newer Chevrolet vehicles. See onstar.com for details and further plan limitations. Connected Access does not include emergency or security services. Availability and additional services enabled by Connected Access are subject to change)
• Rear Vision Camera
• Teen Driver configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on your driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

REMOTE VEHICLE STARTER SYSTEM

• Includes (UTJ) Theft-deterrent system.)

BED LINER, SPRAY-ON, PICKUP BOX BED LINER

• with bowtie logo. Liner is permanently bonded to the truck bed providing a water tight seal. The textured
• non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails
• including tailgate
• front box top rail
• gauge hole plugs and lower tie down loops.

MIDNIGHT EDITION

• includes (P3H) front and rear Black Bow Tie
• (REG) 18" 5-spoke Black painted alloy wheels
• (RI8) 18" Goodyear Wrangler DuraTrac 265/65R18 SL 114S blackwall MT tires with aggressive tire tread
• (UD7) Rear Park assist
• Large Z71 Badge on Doors
• Black Front Skid Plate

LT PREFERRED EQUIPMENT GROUP

• includes standard equipment

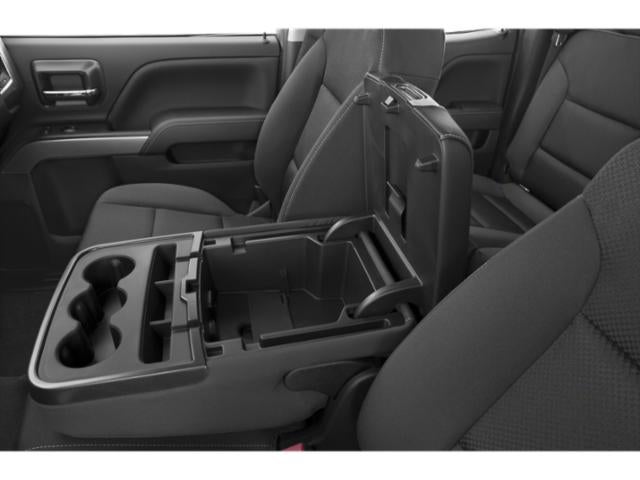

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER.

• Available in cloth. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar
• lockable storage compartment in seat cushion
• and storage pockets. (STD) (Includes (AG1) driver 10-way power seat-adjuster with (PDA) Texas Edition or (PDU) All Star Edition.)

AUDIO SYSTEM, CHEVROLET INFOTAINMENT SYSTEM WITH 8" DIAGONAL COLOR TOUCH-SCREEN, AM/FM STEREO

• with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone; and Shop with the ability to browse
• select and install apps to your vehicle. Apps include Pandora
• iHeartRadio
• The Weather Channel and more. (STD)

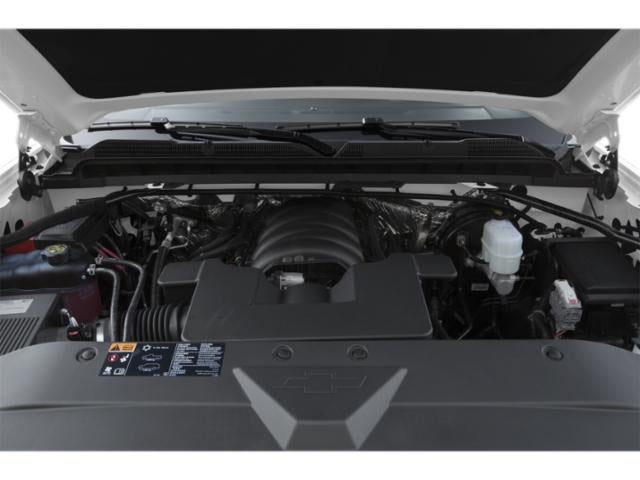

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm) (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

• Trailering Package includes trailer hitch
• 7-pin and 4-pin connectors
• Engine
• 5.3L EcoTec3 V8 with Active Fuel Management
• Direct Injection and Variable Valve Timing includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)
• Rear axle
• 3.42 ratio
• Pickup box
• Hill Descent Control
• Transfer case
• electronic Autotrac with rotary dial control (Included with 4WD models only.)
• Differential
• heavy-duty locking rear
• Four wheel drive
• Cooling
• external engine oil cooler
• Cooling
• auxiliary external transmission oil cooler
• Air cleaner
• high-capacity
• Battery
• heavy-duty 720 cold-cranking amps/80 Amp-hr
• maintenance-free with rundown protection and retained accessory power
• Alternator
• 150 amps
• Underbody shield
• transfer case protection
• Frame
• fully-boxed
• hydroformed front section
• GVWR
• 7200 lbs. (3266 kg) (Requires 4WD model.)
• Steering
• Electric Power Steering (EPS) assist
• rack-and-pinion
• Brakes
• 4-wheel disc with DURALIFE rotors
• 4-wheel antilock
• Capless Fuel Fill
• Exhaust
• aluminized stainless-steel muffler and tailpipe
• Tire carrier lock
• keyed cylinder lock that utilizes same key as ignition and door
• Bumper
• front
• body-color
• Bumper
• rear body-color
• with CornerSteps
• Lamps
• cargo area
• cab mounted with switch on center switch bank
• CornerStep
• rear bumper
• Moldings
• bodyside
• body color
• Wheelhouse liners
• rear
• Grille surround
• body color
• Active aero shutters
• front
• Headlamp bezels
• body-color
• Fog lamps
• thin profile LED
• Mirrors
• outside heated power-adjustable (includes driver's side spotter mirror) (Body-color.)
• Mirror caps
• body-color (With (WGQ) Redline Edition or (WJP) Midnight Edition mirror caps will be black.)
• Glass
• deep-tinted
• Door handles
• body-color (With (WGQ) Redline Edition or (WJP) Midnight Edition door handles will be black.)
• Tailgate and bed rail protection cap
• top
• Remote Locking Tailgate
• Tailgate
• EZ-Lift and Lower
• Radio
• HD
• 6-speaker audio system
• Chevrolet 4G LTE and available built-in Wi-Fi hotspot offers a fast and reliable internet connection for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first) (Available Wi-Fi requires compatible mobile device
• active OnStar service and data plan. Data plans provided by AT&T. Visit onstar.com for details and system limitations.)
• Seat
• rear 60/40 folding bench (folds up)
• 3-passenger (includes child seat top tether anchor)
• Instrumentation
• 6-gauge cluster featuring speedometer
• fuel level
• engine temperature
• tachometer
• voltage and oil pressure
• Driver Information Center
• 4.2-inch diagonal color display includes driver personalization
• warning messages and vehicle information
• Windows
• power front and rear with driver express up and down and express down on all other windows
• Visors
• driver and front passenger illuminated vanity mirrors
• Assist handle
• front passenger on A-pillar
• StabiliTrak
• stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Airbags
• dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera
• Teen Driver configurable feature that lets you activate customizable vehicle settings associated with a key fob
• to encourage safe driving behavior. It can limit certain vehicle features
• and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on your driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): 3098
• Curb Weight - Rear (lbs): 2016
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 920
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2250
• Maximum Trailering Capacity (lbs): 9200
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent Driving
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: RI8
• Front Tire Order Code: RBX
• Rear Tire Order Code: RI8
• Rear Tire Order Code: RBX
• Spare Tire Order Code: XCQ
• Front Tire Size: 265/65R18SL
• Front Tire Size: P265/65R18
• Rear Tire Size: 265/65R18SL
• Rear Tire Size: P265/65R18
• Spare Tire Size: P265/70R17SL
• Front Tire Capacity (lbs): 3950
• Rear Tire Capacity (lbs): 3950
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 18 x 8.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: 16.3
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 143.5
• Length, Overall (in): 230.03
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 73.9
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 141.37
• Cab to Axle (in): 41.5
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.87
• Ground Clearance, Rear (in): 8.87
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.87
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.1
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -

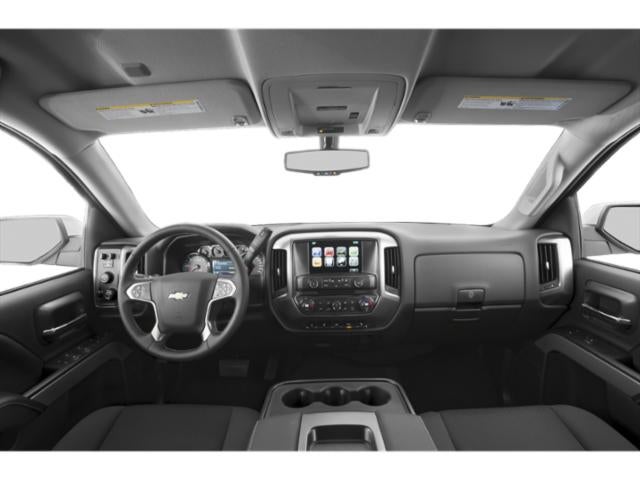

• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.8
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 65.93
• Front Hip Room (in): 60.73
• Second Head Room (in): 38.67
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 65.8
• Second Hip Room (in): 60.23
• Summary

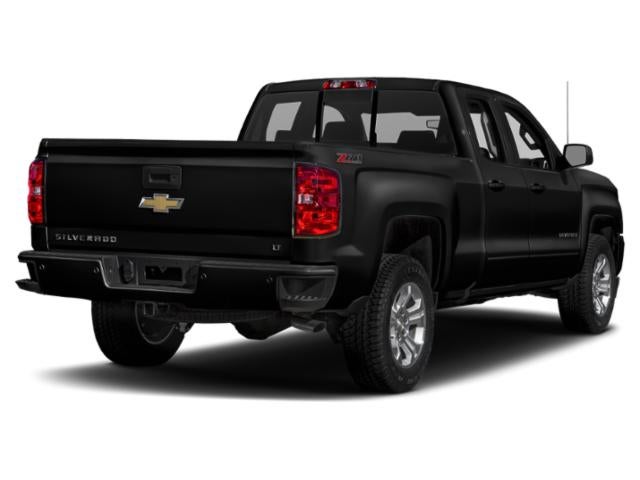

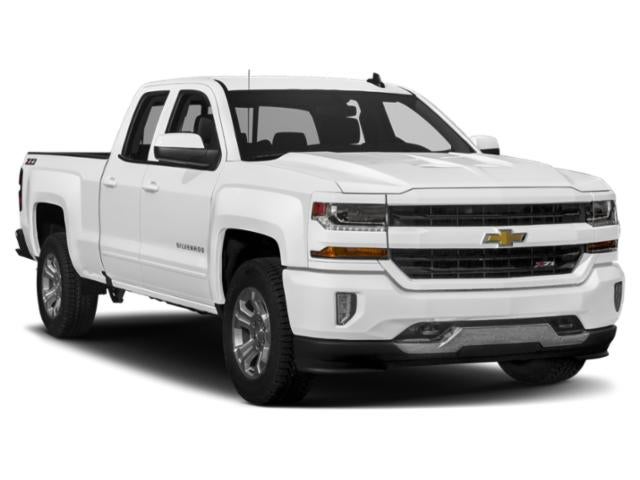

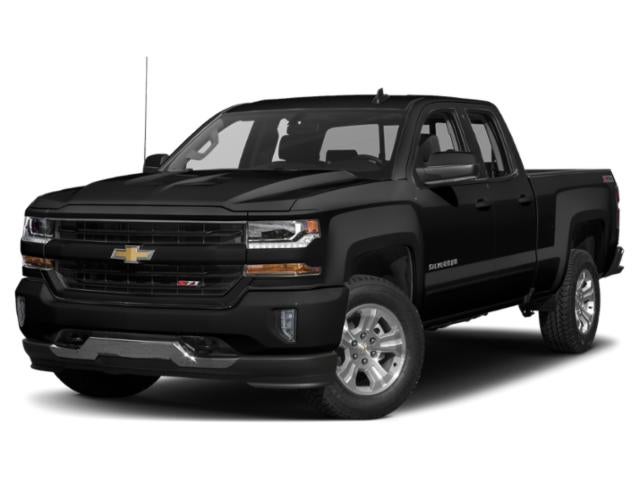

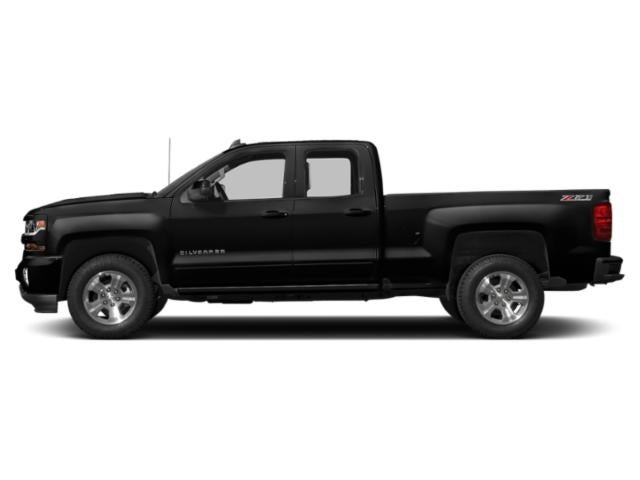

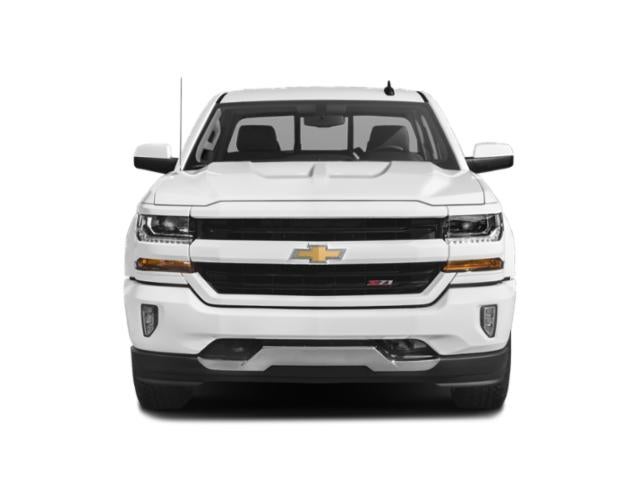

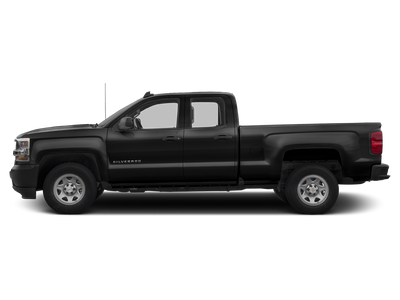

• Vehicle Name: Chevrolet Silverado 1500 LD
• Body Style: Double Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.3
